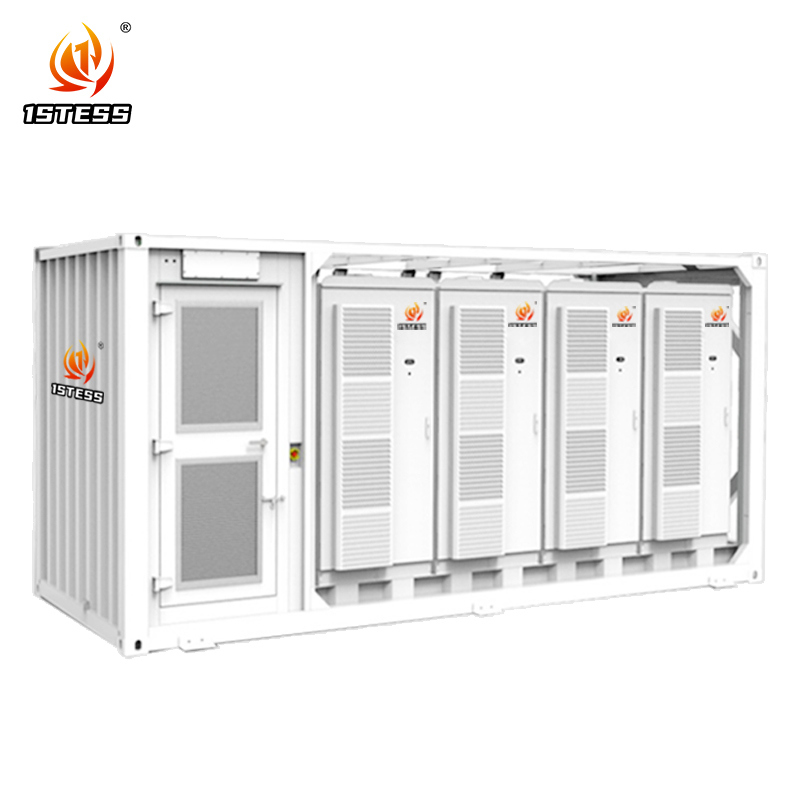

Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh

Chi tiết sản phẩm

Nguồn gốc: Trung Quốc

Hàng hiệu: 1stess

Chứng nhận: 1

Số mô hình: Năng lượng

Tài liệu: Specification EnerCube3.0-F...ch.pdf

Điều khoản thanh toán và vận chuyển

Số lượng đặt hàng tối thiểu: 1

Giá bán: negotiable

chi tiết đóng gói: container

Thời gian giao hàng: 60-90 ngày

Điều khoản thanh toán: L/C, T/T.

Khả năng cung cấp: 10 container mỗi tháng

Nhận được giá tốt nhất
Liên hệ ngay bây giờ
Thông số kỹ thuật
Làm nổi bật:

Modular battery storage system IP55

,

Outdoor battery container solution 1500kWh

,

Containerized energy storage system with warranty

Hệ thống giám sát:
Giám sát và điều khiển từ xa
Phạm vi điện áp:
400-800V
Kích thước container:
20ft
Bảo hành:
5 năm
Ứng dụng:
Ổn định lưới điện và cạo đỉnh
Dung lượng pin:
Có thể thương lượng
Hệ thống giám sát:
Giám sát và điều khiển từ xa
Phạm vi điện áp:
400-800V
Kích thước container:
20ft
Bảo hành:
5 năm
Ứng dụng:
Ổn định lưới điện và cạo đỉnh
Dung lượng pin:
Có thể thương lượng
Mô tả
Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh
Product Features:
  • Modular design
  • All-in-One design
  • Supports AC and Dc coupling
  • Standard 20HQ container
  • Classification society certification
  • 7*24 hours monitoring
  • Online assisted O&M
Product Parameters:
Type P400C860 P500C1075 P600C1290 P700C1505 P800C1720
DC side parameters
Cell type &capacity LiFePO₄-280Ah
Battery module type 1P20S
System configuration 4*1P240S 5*1P240S 6*1P240S 7*1P240S 8*1P240S
Capacity(BOL) 860kWh 1075kWh 1290kWh 1505kWh 1720kWh
AC side parameters
Grid type 3P4W+PE
Rated output power 400kW 500kW 600kW 700kW 800kW
Rated voltage AC400V
Rated frequency 50/60(±5)Hz
Maximum output current 577A 722A 866A 1010A 1155A
Harmonics <3%(@rated power)
Overload capacity 110%,10mins;120%,60s
General parameters
Isolation transformer No
Protection level Outdoor installation (Battery cabinet:IP55,Electrical room:IP34)
Container anti-corrosion grade C3
Operation temperature* -20℃~50℃
Relative humidity 0~95%(non-condensing)
Permissible altitude** <2000m
Cooling method Battery cabinet:HVAC,Electrical room:forced air cooling
Fire fighting system FAS &FM200/Novec1230
Noise emission ≤75dB
Dimension (W*D*H) 20HQ container (6058mm*2438mm*2896mm)
Maximum weight 24500kg
Communication interface Ethernet
Communication protocol Modbus TCP/IP
Warranty 5 years (can be extended to 10 years)Warranty
Certification System:UN3536,LVD,EMC,RoHS Cell:IEC62619,UL1973,UL9540A PACK:UN38.3
PCS:G99,EN50549,AS4777.2,VDE4105

Modular Battery Energy Storage System IP55 Outdoor Rated Container Solution 1500kWh 8

Core Advantages of Our Containerized Energy Storage System
  1. All-in-One Plug & Play Design Pre-integrated within a standardized shipping-integrated within a standardized shipping container for rapid deployment. Reduces on-site installation time by up to 70% and slashes project costs. Optimized for seamless transport, lifting, and maintenance.

  2. Intelligent Modular Architecture Self-managing battery clusters with built-in thermal isolation ensure safety and reliability. Maintain or replace individual clusters without shutting down the entire system—minimizing operational disruptions.

  3. Universal Energy disruptions.

  4. Universal Energy Integration Supports both AC and DC coupling for flexible connectivity with solar arrays, wind turbines, diesel generators, and grid networks. Enables efficient bidirectional energy flow for charging/discharging.

  5. Scalable Power & Robust Performance Choose from 400kW–800kW power outputs and 860kWh–1720kWh capacities. Delivers high efficiency (<3% harmonic distortion) with overload resilience (110% for 10 mins, 120% for 60s).

  6. Military-Grade Safety Multi-layer protection: fire suppression (FM200/Novec1230), thermal runaway containment, and 24/7 monitoring. Globally certified (UL1973, IEC62619, UN38.3) with IP55/IP54 environmental shielding.

Environmental shielding.

  1. Extreme Environment Ready Operates from -20°C to 50°C and withstands 95% humidity. Corrosion-resistant (C3 grade) and altitude-adaptive (up to 2000m). Low-noise operation (≤75dB) ensures community-friendly deployment.

  2. Smart Predictive Maintenance Cloud-based monitoring platform enables remote diagnostics, fault prediction, and proactive servicing—cutting downtime by 40% and extending system lifespan.

  3. Future-Proof Investment Backed by a 5-year standard warranty (extendable to 10 years), reducing long-term ownership risks.
